Double Sided PET Tape
Ultra-thin · Dimensionally stable
LubandArt manufactures Double Sided PET Tape built on a PET carrier with pressure-sensitive adhesive. Thickness, width, roll length, adhesive system and release liner can be customized according to the substrate, application environment and production requirements.
Jumbo Roll · Converted Roll · Finished Parts
Built for converters, wholesalers and distributors — LubandArt supplies Double Sided PET Tape in the form your production line needs.
For converters Jumbo Roll
Master rolls supplied by width and length for converters and die-cutters — ready for your own slitting and converting.
For distributors Converted Roll
Slit and rewound to your required width, roll length, liner and core — direct-application rolls for wholesalers and distributors.
For assembly lines Finished / Die-Cut
Die-cut shapes and parts produced to drawing, ready to apply on your assembly line with no further conversion.
Industrial Double Sided PET Tape Solutions
LubandArt manufactures Double Sided PET Tape built on a PET carrier with pressure-sensitive adhesive. Thickness, width, roll length, adhesive system and release liner can be customized according to the substrate, application environment and production requirements.
Adhesive system, carrier density, thickness, width, roll length and release liner can all be adjusted to the substrate, application environment and production process.
- ✓ Engineered for consistent, repeatable performance
- ✓ Customized to your substrate and service environment
- ✓ Sample options can be discussed for in-house validation before mass production
Why Choose Double Sided PET Tape
Ultra-thin carrier that saves space
Dimensionally stable, resists stretching
Lays flat without curling
Suited to precision die-cutting

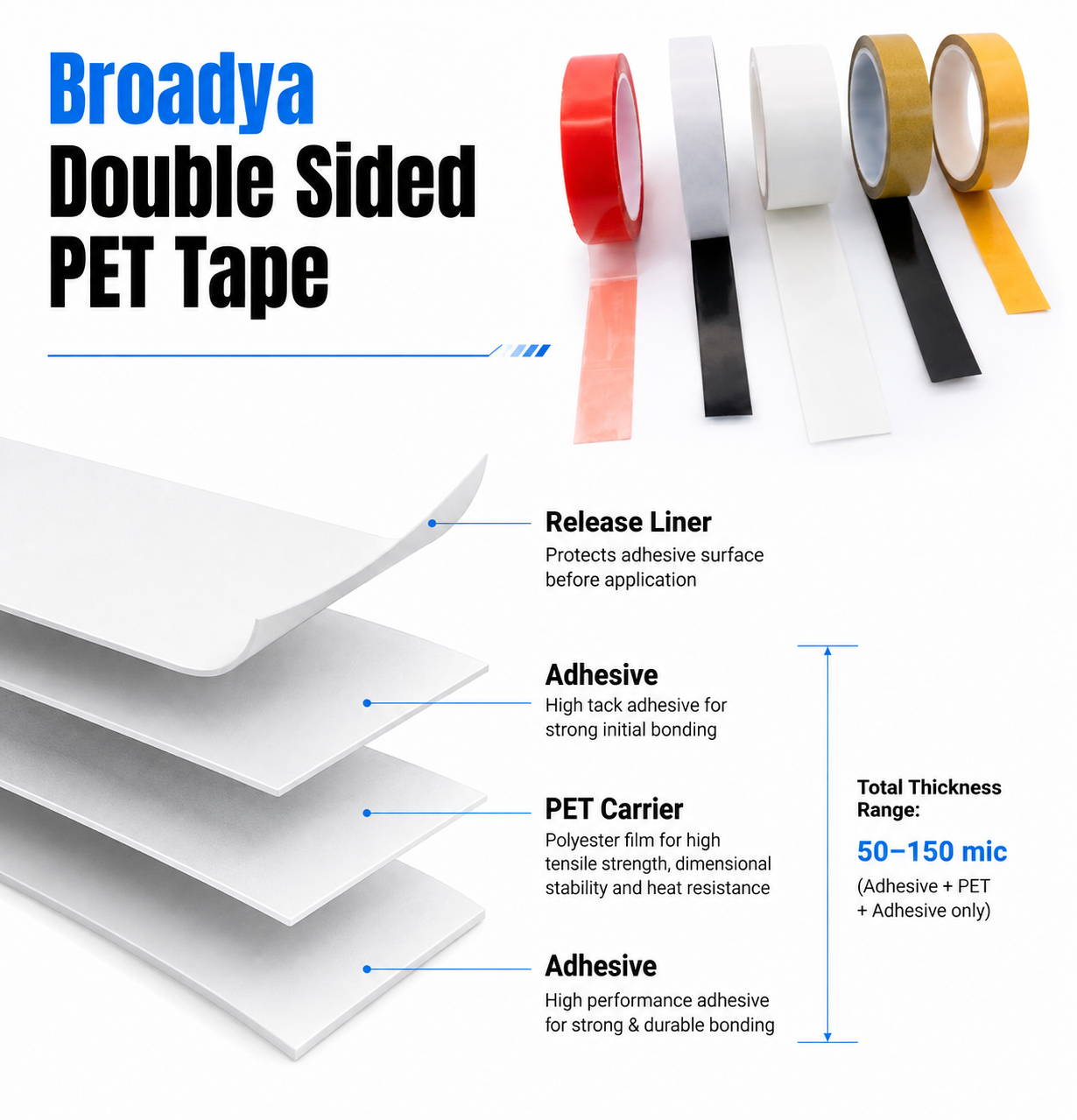

Double Sided PET Tape Structure
Double-sided pet tape consists of a pet carrier coated on both sides with pressure-sensitive adhesive and protected by release liners.
Technical Specifications
Ranges below are typical. Final values are confirmed by the selected specification and test report, and non-standard customization is supported.
Structure & Suitable Substrates
Visual references are provided for selection. Final construction and substrate suitability are confirmed against the project specification and sample test.
Samples, MOQ & Lead Time
Final commercial terms depend on tape construction, width, roll length, packaging and order quantity. Send the target specification for a confirmed quote.
Display thin bonding
Plastic-part precision fixing
Nameplate / label
Film lamination
Configure Double Sided PET Tape for Your Application
Select adhesive system, carrier thickness, release liner and converting format for your substrate, environment and assembly process.
Custom Supply & OEM
Typical MOQ
Depends on model, width, length, adhesive system and customization level. Trial orders on standard specs are welcome.
Sample Lead Time
Confirmed after reviewing the requested specification, stock position and sample format.
Bulk Production
Usually 7–10 working days, depending on specification, converting requirements and quantity.
OEM Customization
Width, thickness, roll length, adhesive system, density, color, liner, core, printing and packaging can all be customized.
From Requirement to Mass Production
A streamlined workflow designed to deliver reliable, high-performance adhesive solutions.
Requirement Analysis
Evaluate application environment, stress factors and bonding parameters.
Material Selection
Match carrier and adhesive chemistry to your technical requirements.
Sample Confirmation
Produce precision prototypes for client-side testing and validation.
Mass Production
Scaled manufacturing with controlled coating, laminating and converting.
Quality Inspection
Test peel adhesion, shear strength and dimensional accuracy.
On-Time Delivery
Pack per agreed requirements and prepare for shipping.
Frequently Asked Questions about Double Sided PET Tape
QWhy choose PET film tape over tissue or OPP tape?
PET carrier is dimensionally stable, has higher temperature resistance (up to ~150-200°C depending on grade) and is unusually thin for its tensile strength. That makes it ideal for electronics, membrane switches, graphic overlays and any application where the tape must not stretch during processing.
QWhat is the thinnest PET tape you supply?
From 0.05 mm total thickness upward. Very thin PET tape is widely used in mobile electronics, RFID inlay bonding and FPC grounding — we can also supply 0.025 mm ultra-thin variants on request.
QDoes PET tape offer electrical insulation?
Yes — PET is a good dielectric and our PET double-sided tape is used as an insulation / bonding layer in transformers, batteries and consumer electronics. Dielectric data is available on request.
QCan PET tape survive reflow-solder or wave-solder processes?
Selected grades with high-temperature acrylic adhesive are designed for SMT reflow and selective wave-solder masking. Send us your thermal profile and we will recommend a tested grade rather than asking you to find out in production.
QCan PET tape be laser-cut?
Yes — PET is one of the cleanest laser-cutting carriers. Common for RFID tag production, smartphone gaskets and small die-cut shapes. We can supply laser-cut parts to drawing with tight tolerance.
QIs PET tape die-cuttable for precision parts?
Yes — PET die-cuts extremely cleanly and is the standard choice for precision parts in electronics and medical devices. Standard tooling or digital cutting both supported.
Not Sure Which Double Sided PET Tape Fits?
Tell us your substrate, tape size and application. Our team will recommend a suitable construction and discuss sample options for testing.
Discuss Your Application
